Thermal Mass Flow Meter

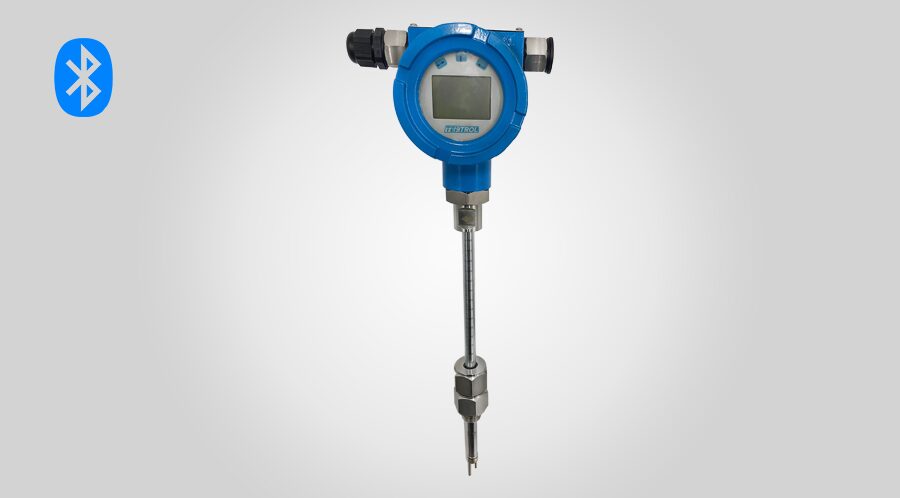

TEK-THERMAL 1700B SERIES THERMAL MASS FLOW METER
Thermal mass flow meter, also known as a thermal dispersion or immersible mass flow meters, are precision instruments used to measure the mass flow of fluid flowing in a closed channel like a pipe or a duct. Tek-Thermal 1700B is specially designed for air and N2 (nitrogen) applications and measures the gas mass flow based on the thermal diffusion method. It has a more compact design and a thin insertion tube probe. It can be used on a pipe from 1″ to 20″. It is used in high-pressure applications.
Features
- Dual line LCD display with 3 setting button
- No pressure loss and it can be used on pipes from 1″ to 20″
- It has more compact design, which means smaller enclosure and thinner insertion tube probe
- Measure mass flow and standard flow directly
- It has self diagnostic function
- It has high accuracy data acquisition circuit
- High effective design of power supply
- Wide Turndown ratio 100:1
- Due to the thin diameter probe, it can be installed in pipe very easily and without stopping all the process
- Cost-effective model
Specifications
| Service | Air and Nitrogen |
| Flow Velocity Range | 0.98 to 98 ft/sec or |
| 1.9 to 190 ft/sec or | |
| 2.9 to 295 ft/sec or | |
| Probe Material | 316 SS |
| Accuracy | ±0.5% of Reading |
| Measured Variables | Mass Flow, Volume Flow, Total Flow, Temperature, Velocity |
| Response Time | 1 second |
| Temperature Limits | -40 °F to 302 °F (-40 °C to 150 °C) |
| Max. Pressure Limit | 232 PSI |
| Mounting Orientation | Horizontal or vertical |
| Process Connection | Insertion NPT |
| Output | 4 to 20mA and Pulse standard; Modbus RS485 or HART optional |
| Power Requirements | 13.5 VDC to 42 VDC or 85 VAC to 265 VAC |
| Enclosure Rating | IP65 |
